Chromatography Columns with Taper Joint
Chromatography Columns with Taper Joint
SKU:C150190508
Couldn't load pickup availability

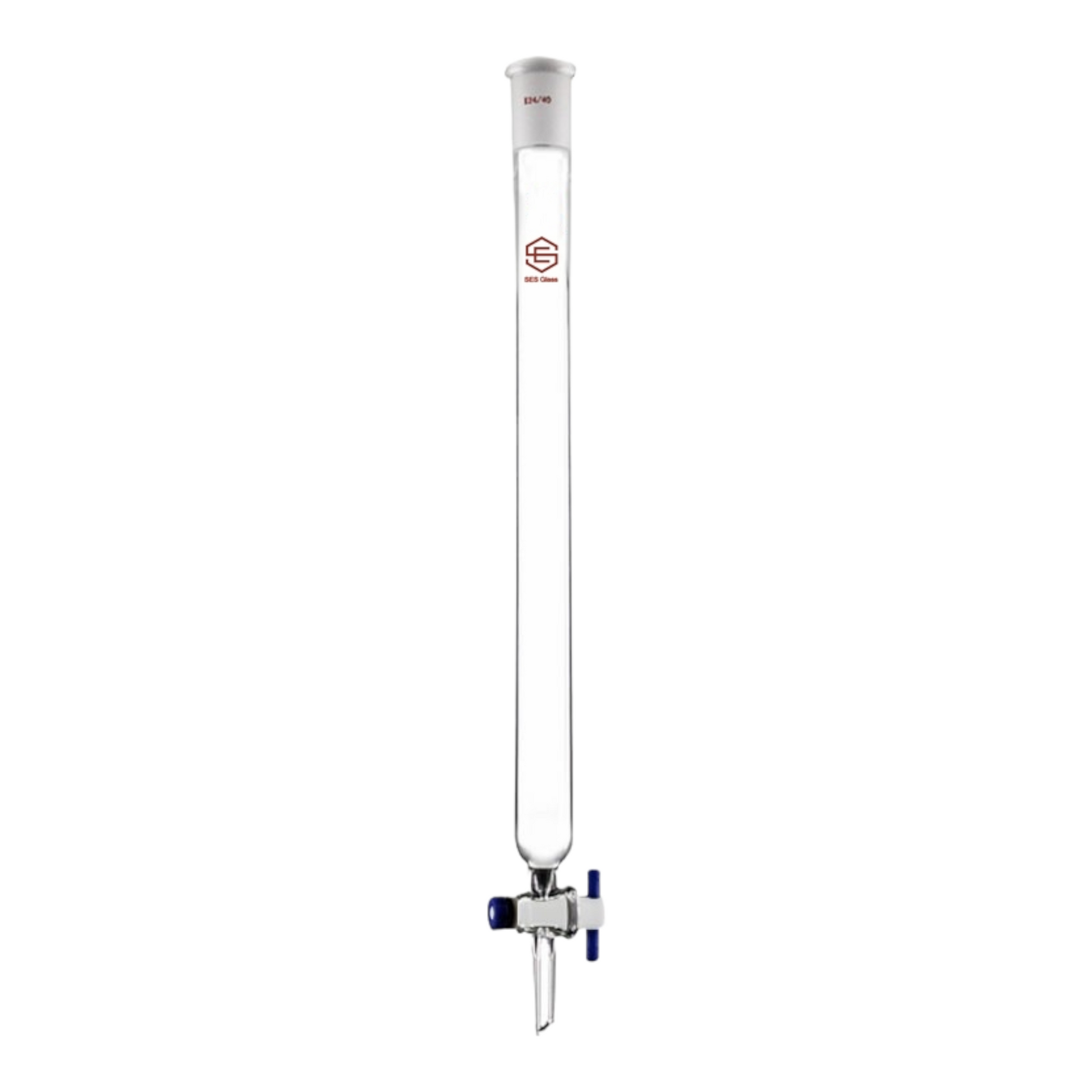

- Features a robust heavy wall design, this versatile column can function either as a gravity-eluted column or a flash column. Equipped with a PTFE stopcock and a top outer (female) joint, it does not include a fritted disc, thereby requiring the use of glass wool or cotton to support the column packing.
- Made of borosilicate glass for its excellent chemical durability and mechanical strength.
- The majority of columns listed on this page are made upon order, the delivery period might exceed the usual timeframe.
- See SC152F for PTFE stopcock replacement parts.
Specifications:
|
Catalog Number |
Joint Size |
Inner Diameter (in.) |
Effective Length (in.) |
Stopcock (mm) |
|
C150190508 |
19/22 |
0.5 |
8 |
2 |
|
C150190510 |
19/22 |
0.5 |
10 |
2 |
|
C150190512 |
19/22 |
0.5 |
12 |
2 |
|
C150197508 |
19/22 |
0.75 |
8 |
2 |
|
C150197510 |
19/22 |
0.75 |
10 |
2 |
|
C150197512 |
19/22 |
0.75 |
12 |
2 |
|
C150197518 |
19/22 |
0.75 |
18 |
2 |
|
C150190108 |
19/22 |
1 |
8 |
2 |
|
C150190110 |
19/22 |
1 |
10 |
2 |
|
C150190112 |
19/22 |
1 |
12 |
2 |
|
C150190118 |
19/22 |
1 |
18 |
2 |
|
C150191508 |
19/22 |
1.5 |
8 |
2 |
|
C150191510 |
19/22 |
1.5 |
10 |
2 |
|
C150191512 |
19/22 |
1.5 |
12 |
2 |
|
C150191518 |
19/22 |
1.5 |
18 |
2 |
|
C150240508 |
24/40 |
0.5 |
8 |
2 |
|
C150240510 |
24/40 |
0.5 |
10 |
2 |
|
C150240512 |
24/40 |
0.5 |
12 |
2 |
|
C150247508 |
24/40 |
0.75 |
8 |
2 |
|
C150247510 |
24/40 |
0.75 |
10 |
2 |
|
C150247512 |
24/40 |
0.75 |
12 |
2 |
|
C150247518 |
24/40 |
0.75 |
18 |
2 |
|
C150240108 |
24/40 |
1 |
8 |
2 |
|
C150240110 |
24/40 |
1 |
10 |
2 |
|
C150240112 |
24/40 |
1 |
12 |
2 |
|
C150240118 |
24/40 |
1 |
18 |
2 |
|
C150241508 |
24/40 |
1.5 |
8 |
2 |
|
C150241510 |
24/40 |
1.5 |
10 |
2 |
|
C150241512 |
24/40 |
1.5 |
12 |
2 |
|
C150241518 |
24/40 |
1.5 |
18 |
2 |
|
C150240208 |
24/40 |
2 |
8 |
4 |
|
C150240210 |
24/40 |
2 |
10 |
4 |
|
C150240212 |
24/40 |
2 |
12 |
4 |
|
C150240218 |
24/40 |
2 |
18 |
4 |
|
C150240224 |
24/40 |
2 |
24 |
4 |
|
C150240308 |
24/40 |
3 |
8 |
4 |
|
C150240310 |
24/40 |
3 |
10 |
4 |
|
C150240312 |
24/40 |
3 |
12 |
4 |
|
C150240318 |
24/40 |
3 |
18 |
4 |
|
C150240324 |
24/40 |
3 |
24 |
4 |
