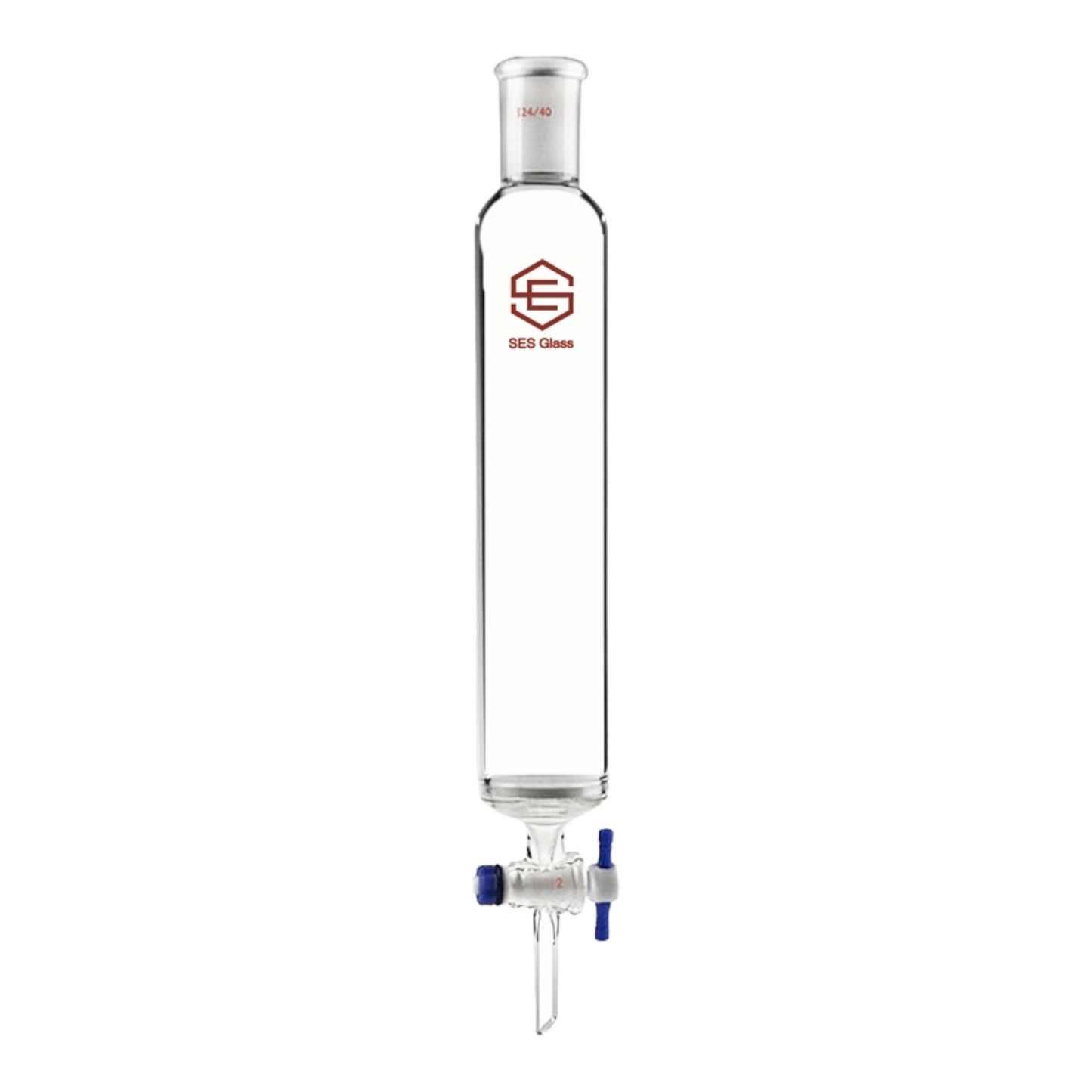

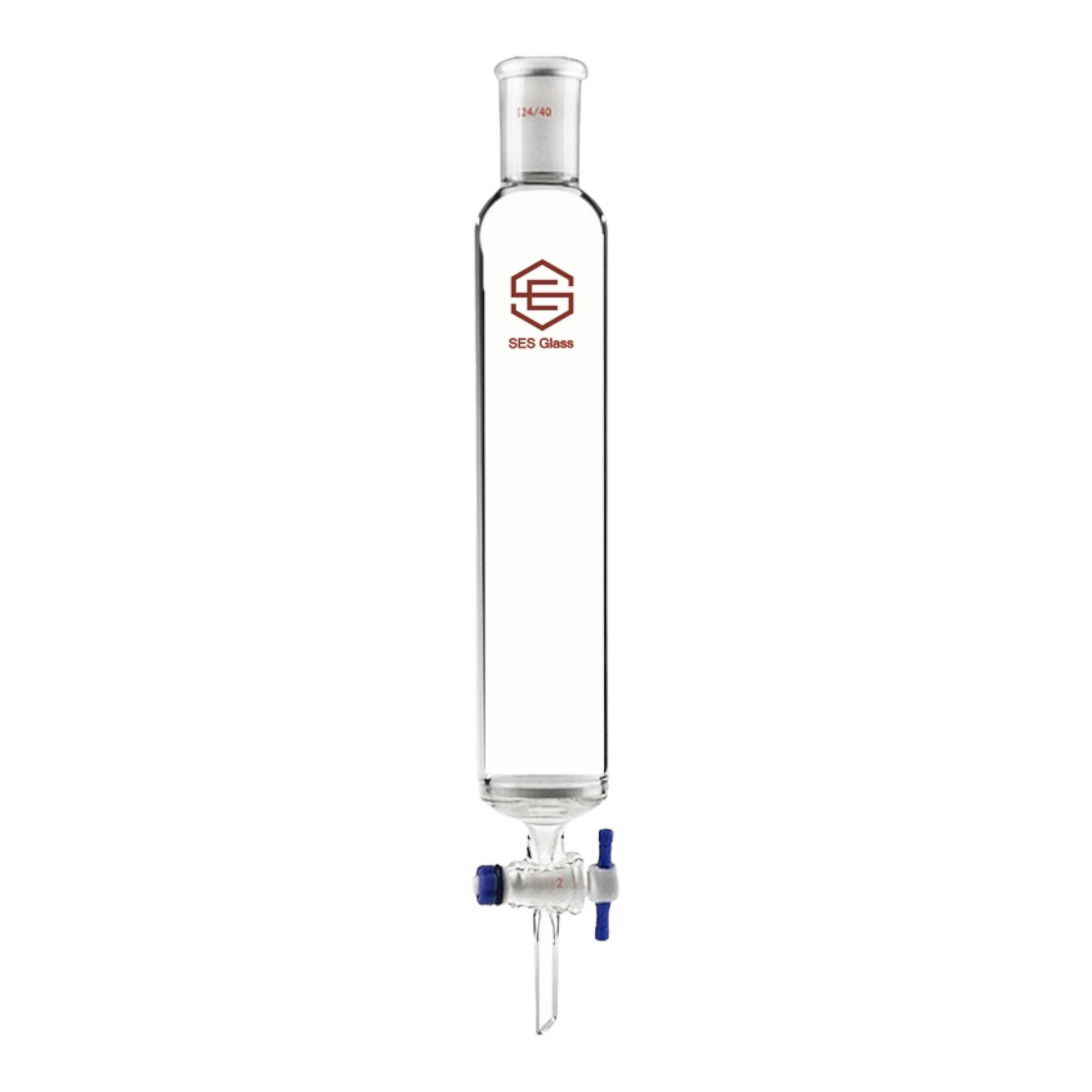

Chromatography Columns with Taper Joint and Fritted Disc
Chromatography Columns with Taper Joint and Fritted Disc
SKU:C151190508
Couldn't load pickup availability
- Features a robust heavy wall design, this versatile column can function either as a gravity-eluted column or a flash column. Equipped with a PTFE stopcock and a top outer (female) joint.
- Features a coarse porosity fritted disc to support column packing.
- Made of borosilicate glass for its excellent chemical durability and mechanical strength.
- The majority of columns listed on this page are made upon order, the delivery period might exceed the usual timeframe.
- See SC152F for PTFE stopcock replacement parts.
Specifications:
|
Catalog Number |
Joint Size |
Inner Diameter (in.) |
Effective Length (in.) |
Stopcock (mm) |
|
C151190508 |
19/22 |
0.5 |
8 |
2 |
|
C151190510 |
19/22 |
0.5 |
10 |
2 |
|
C151190512 |
19/22 |
0.5 |
12 |
2 |
|
C151197508 |
19/22 |
0.75 |
8 |
2 |
|
C151197510 |
19/22 |
0.75 |
10 |
2 |
|
C151197512 |
19/22 |
0.75 |
12 |
2 |
|
C151197518 |
19/22 |
0.75 |
18 |
2 |
|
C151190108 |
19/22 |
1 |
8 |
2 |
|
C151190110 |
19/22 |
1 |
10 |
2 |
|
C151190112 |
19/22 |
1 |
12 |
2 |
|
C151190118 |
19/22 |
1 |
18 |
2 |
|
C151191508 |
19/22 |
1.5 |
8 |
2 |
|
C151191510 |
19/22 |
1.5 |
10 |
2 |
|
C151191512 |
19/22 |
1.5 |
12 |
2 |
|
C151191518 |
19/22 |
1.5 |
18 |
2 |
|
C151240508 |
24/40 |
0.5 |
8 |
2 |
|
C151240510 |
24/40 |
0.5 |
10 |
2 |
|
C151240512 |
24/40 |
0.5 |
12 |
2 |
|
C151247508 |
24/40 |
0.75 |
8 |
2 |
|
C151247510 |
24/40 |
0.75 |
10 |
2 |
|
C151247512 |
24/40 |
0.75 |
12 |
2 |
|
C151247518 |
24/40 |
0.75 |
18 |
2 |
|
C151240108 |
24/40 |
1 |
8 |
2 |
|
C151240110 |
24/40 |
1 |
10 |
2 |
|
C151240112 |
24/40 |
1 |
12 |
2 |
|
C151240118 |
24/40 |
1 |
18 |
2 |
|
C151241508 |
24/40 |
1.5 |
8 |
2 |
|
C151241510 |
24/40 |
1.5 |
10 |
2 |
|
C151241512 |
24/40 |
1.5 |
12 |
2 |
|
C151241518 |
24/40 |
1.5 |
18 |
2 |
|
C151240208 |
24/40 |
2 |
8 |
4 |
|
C151240210 |
24/40 |
2 |
10 |
4 |
|
C151240212 |
24/40 |
2 |
12 |
4 |
|
C151240218 |
24/40 |
2 |
18 |
4 |
|
C151240224 |
24/40 |
2 |
24 |
4 |
|
C151240308 |
24/40 |
3 |
8 |
4 |
|
C151240310 |
24/40 |
3 |
10 |
4 |
|
C151240312 |
24/40 |
3 |
12 |
4 |
|
C151240318 |
24/40 |
3 |
18 |
4 |
|
C151240324 |
24/40 |
3 |
24 |
4 |
