Graham Condensers
Graham Condensers
SKU:C13314120
Regular price
$57.00 USD
Regular price
Sale price
$57.00 USD
Unit price
/
per
Couldn't load pickup availability
-

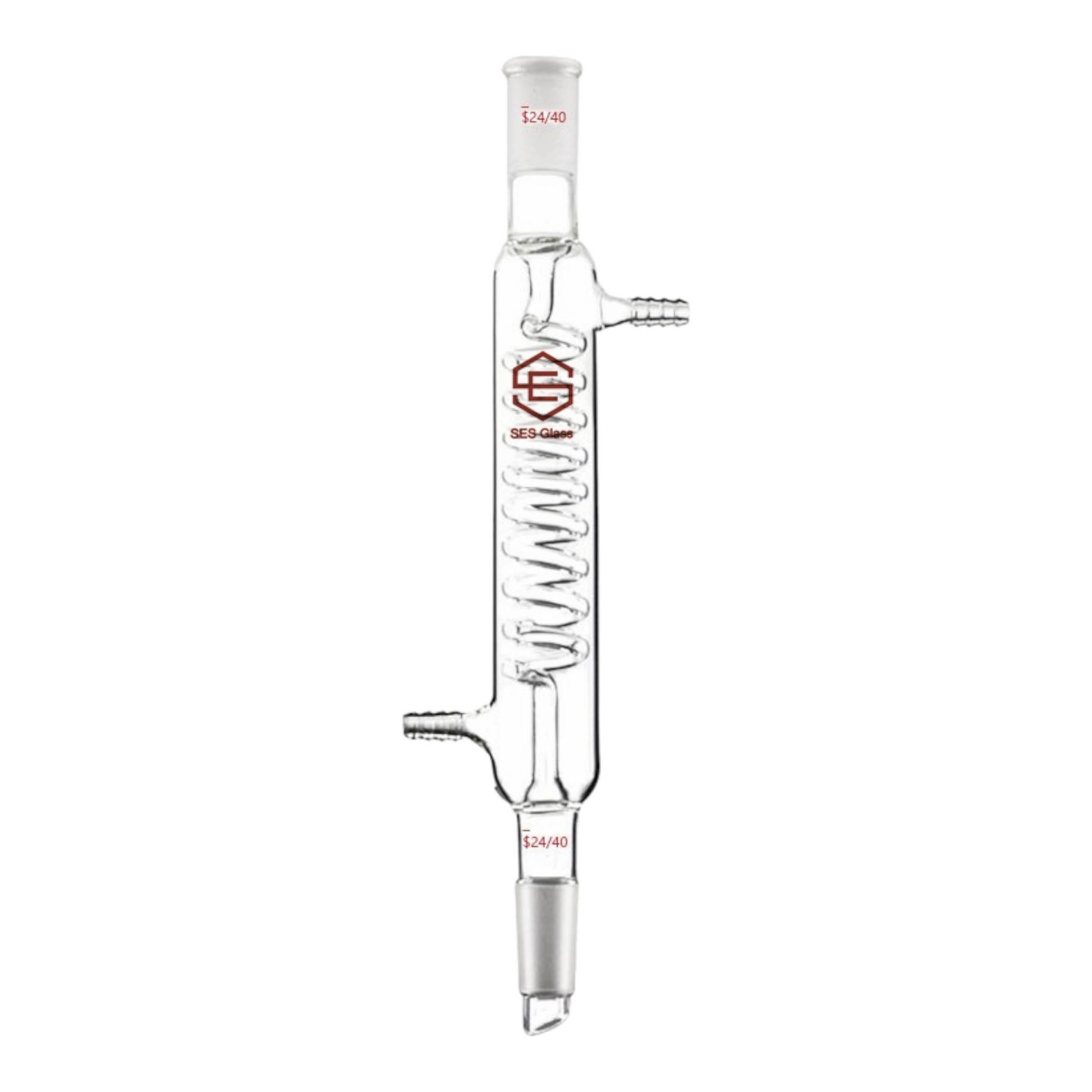

The Graham condenser, characterized by its coiled inner tube to increase surface area, offers enhanced condensation efficiency due to improved heat exchange, making it ideal for low boiling point substances.
- The effective height is measured from the top to the bottom of the jacketed portion of the condenser.
- The condenser features two standard taper joints of the same size: a top outer (female) joint and a lower inner (male) joint.
- Made of borosilicate glass for its excellent chemical durability and mechanical strength.
Specifications:
|
Catalog Number |
Joint Size |
Effective Height (mm) |
O.D. Hose Connection (mm) |
|
C13314120 |
14/20 |
120 |
8 |
|
C13319120 |
19/22 |
120 |
8 |
|
C13319200 |
19/22 |
200 |
8 |
|
C13319250 |
19/22 |
250 |
8 |
|
C13319300 |
19/22 |
300 |
8 |
|
C13319400 |
19/22 |
400 |
8 |
|
C13324200 |
24/40 |
200 |
10 |
|
C13324250 |
24/40 |
250 |
10 |
|
C13324300 |
24/40 |
300 |
10 |
|
C13324400 |
24/40 |
400 |
10 |
|
C13324500 |
24/40 |
500 |
10 |
